Cross-Site Request Forgery Mitigation Mechanism

Cross-Site Request Forgery (CSRF) is an attack that forces an end user to execute unwanted actions on a web application in which they're currently authenticated. For more information follow this link.

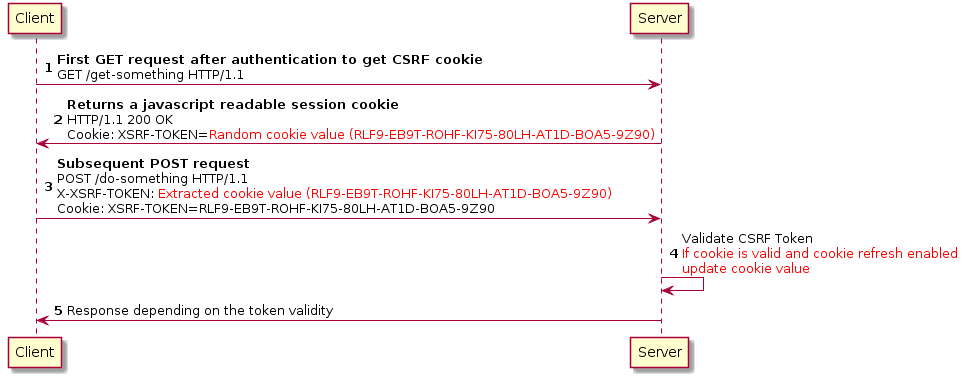

To mitigate this kind of attacks, OData provider use a Double Submit Cookie pattern based security mechanism. The following image depicts the design of the aforementioned CSRF mitigation mechanism.

Implementation Details

• CSRF-Header Name: X-XSRF-TOKEN

• CSRF-Cookie Name: XSRF-TOKEN

• Protected HTTP Requests

  • Requests using HTTP method other than "GET, OPTIONS, HEAD"

• First GET request is used to return CSRF cookie.

  • XSRF-TOKEN: {WEYX-SUMQ-ZGBR-9MGL-LOFX-U4LK-5AX5-UPB0}

• Properties of CSRF-Cookie

  • Session Cookie -> (Cookie only expires when browser session is destroyed)
  • Secured -> It will be passed to server only through https
  • Path is set as in JSESSIONID cookie -> Cookie will be shared among related deployments. (Cookie created in main will also be sent to main-extensions)
  • Will be updated only by protected requests if refresh is enabled

• CSRF attack detection

  • Protected Request (POST, DELETE, PUT, PATCH)
  • CSRF-Header and/or CSRF-Cookie is not present || CSRF-Header and CSRF-Cookie value mismatch

• Response for CSRF attack

  • HTTP status: 403 Forbidden
  • Error Code: "CSRF_ERROR"
  • Error Message: " A security error occurred while processing the request."

• CSRF protected ODP deployments by Default

  • main, main-extensions, b2b, b2b-extensions

• CSRF unprotected ODP deployments by Default

  • Integration

• IFS Console Arguments for enabling CSRF protection

  • -Dodp.csrf.protection.enabled = true/false -> Default is true
  • -Dodp.csrf.token.refresh.enabled = true/false -> Default is false

Connecting through third party Apps

Refer this link for information on implementing the above for Microsoft Power Apps and Logic Apps.
