This document describes how to install the IFS-Primavera Project integration.
Use this document when an integration is installed or configured.
Prior to running the setup, Oracle Web Logic Server and Database (Oracle or SQL
Server) should be setup. Please refer relevant Primavera documentation for
additional information (Web logic and database versions should be supported by
Primavera)

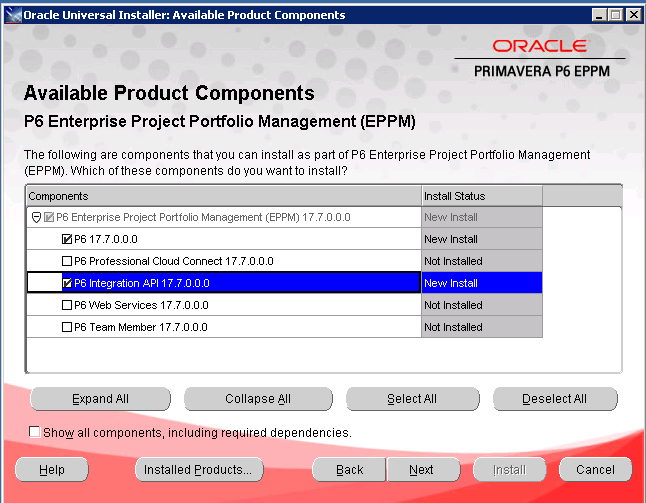

Relative location of the installation is "Primavera P6 Enterprise Project Portfolio Management (18.8 or 17.9) for Microsoft Windows x64 (64-bit)\(P6_R179)\Disk1\install\setup.exe". Start the setup and proceed. Make sure (P6 17.9/18.8 and P6 Integration API 17.9.0.0/18.8) is checked. The integration API will be installed in Remote Mode by default.
Primavera Integration API Installer will invoke the Database Configuration window and permission to use the database will be requested.
Note that for any of the above options, the Integration API requires pubuser access to the database.
Once the
setup is finished, the configuration wizard will open.

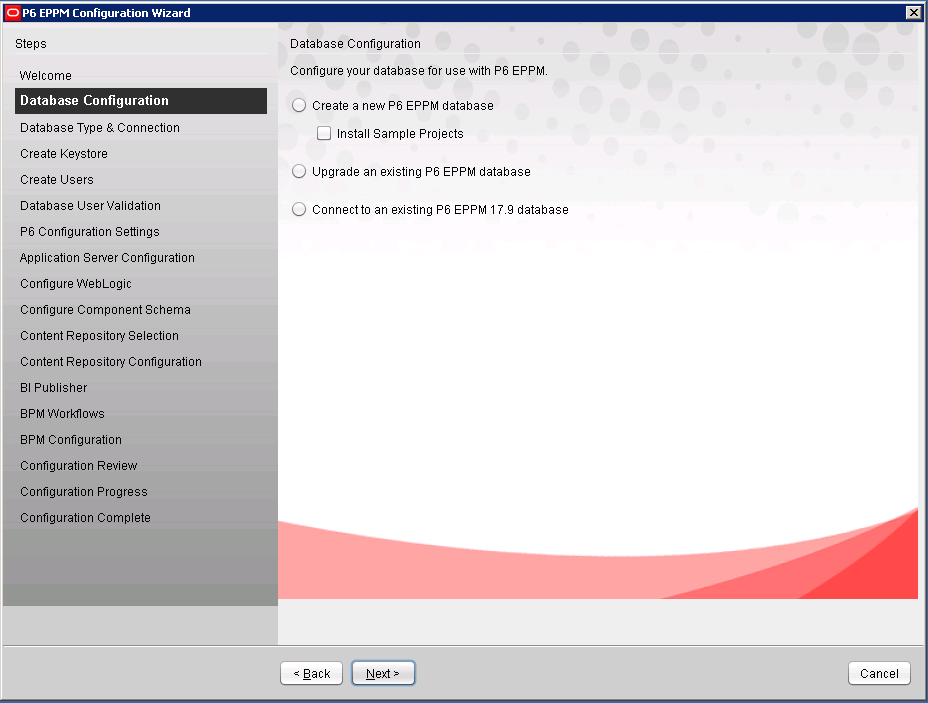

From the P6 EPPM configurations wizard, Primavera can be deployed in the database which was created in earlier step.
Both Oracle and Microsoft SQL server are supported as databases. Refer the
Primavera documentation for further details on Primavera installation.

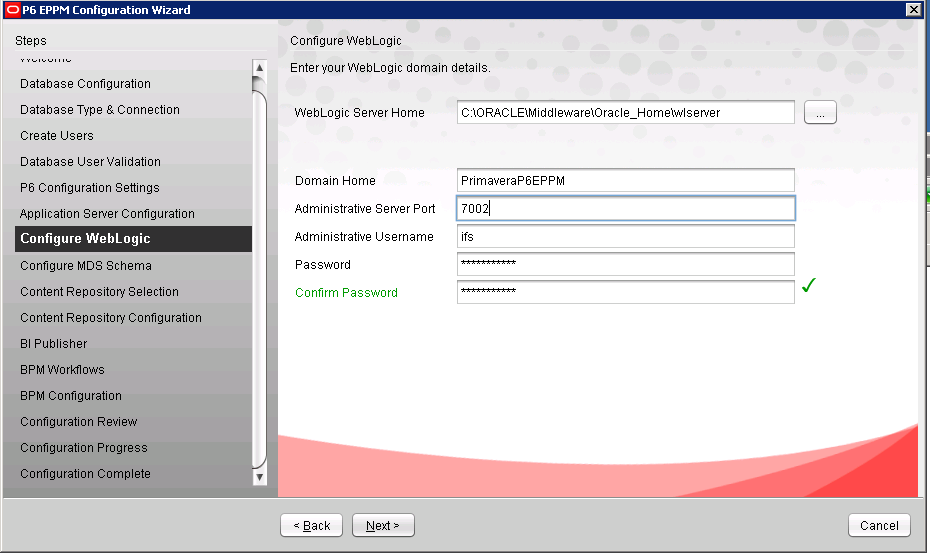

Configure the web logic server for Primavera deployment. Refer Primavera documentation for further detail.
Deploy the PrimaveraAPI.war file to the Web logic server. You may find the WAR file in <Primavera Home>\api\applications
Log on to the Primavera database using the Primavera Project Management web client (http://<server>:<port>/p6/action/login). Please use the default Primavera user admin with password admin. For further information, please refer the Primavera documentation.
Verify that the Primavera user to be used for exporting/importing to/from Primavera is licensed to access the Primavera Integration API. This can be set in the Primavera Project Management client under Admin\Users Access. In the examples used, Primavera user Admin is configured for this purpose. Following image shows how it is done in P6 V17.9.
The Integration API is a set of Java classes provided by Primavera. Please refer to Primavera Integration API Administrator's Guide for more information.
PrimaveraBootstraphome
and this path should not
contain spaces. It is assumed that IFS Middleware Server is installed and IFS home is ready. A few JVM parameters should be updated for P6 Integration API to function.
Open IFS Admin Console and log in.

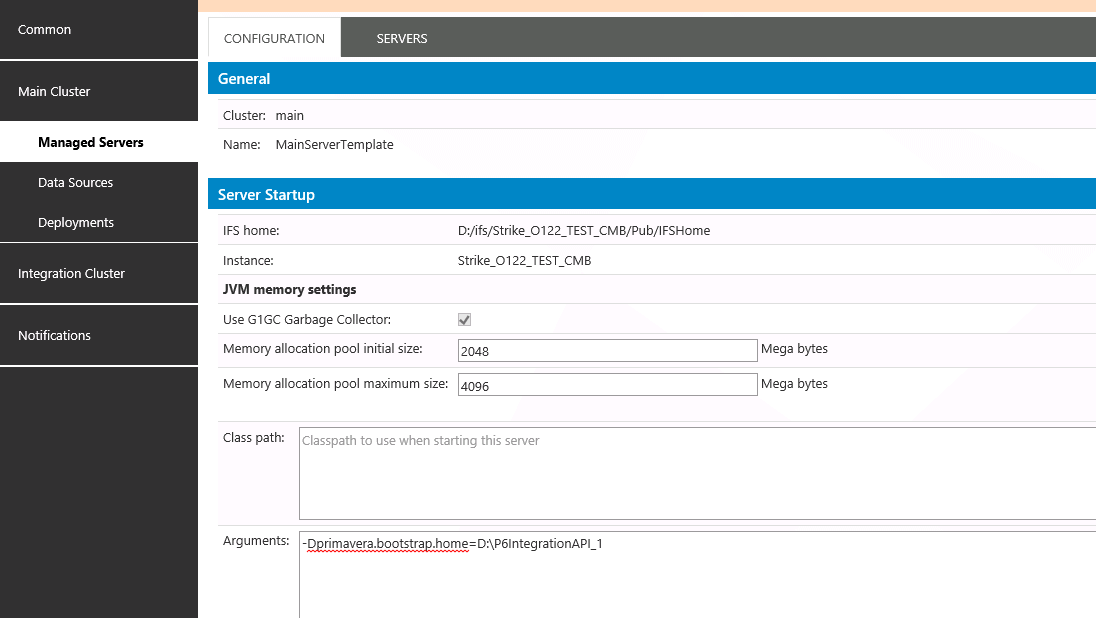

Go to Managed servers and set the Primavera bootstrap home under Argument section. See the picture below for more information.
- If the IFS Middleware server is installed on a Windows operating system:
-Dprimavera.bootstrap.home=C:\P6IntegrationAPI
- If the IFS Middleware server is installed on a Linux operating system
-Dprimavera.bootstrap.home=/opt/P6IntegrationAPI
Note that spaces are not allowed in
primavera.bootstrap.home
path.
Before the first use of Primavera Integration,
To finalize the installation, start an IFS Enterprise Explorer and go to Project Management\Integration to External Planning Tools\Integration Setup\Integration Database Setup. Enter basic data as described below.
Column | Description |
---|---|
Setup ID | The identity of the setup used to access the external planning tool. The value in this field is an alphanumerical value that can be manually entered. If it is left empty, a value will be entered by the system. |
External Planning Tool | The external planning tool for which the integration setup is valid. The List of Values shows the possible values for this field. |
External Planning Tool Database | The name of the oracle or SQL server database. This database was used in the initial database configuration using Primavera database configuration tool. Alternatively, this can be found in the BREBootStrap.xml file. |
External Planning Tool User Id | The user identity that is used to access the external planning tool. |
External Planning Tool User Password | The password of the user that is used to log into the external planning tool when executing the integration. The value entered in this field will be encrypted. |
External Planning Tool Host | Name of the web logic server where the Business Rule Engine is deployed. |
External Planning Tool Port | RMI Port of the above host. Default is 9099 |
External Planning Tool Time Zone | Time Zone of the Primavera server. (Ex. If Primavera server is in Stockholm and IFS Middleware server installed in London, then Time Zone should be set as "(UTC+01:00) Amsterdam, Berlin, Bern, Rome, Stockholm, Vienna"). If both IFS middleware server and Primavera server in same time zone, then this column can be left blank. |
You may connect to multiple Primavera Databases of the same version. To facilitate this, add multiple records through above interface.
In the IFS Solution Manager, ensure that the "OperationManager"
and "ProjxManageExtProjects" permissions are granted to the "PRIMAVERA_INTEGRATION"
role that will run the Primavera Integration. These two permissions are created
by default for the permission set "PRIMAVERA_INTEGRATION". If the permission set does not
exist after installation it should be created manually (Run projx\database\projx\Security_Primavera_Integration.ins).
To grant this permission set, only add the new Permission Set to the users that should be allowed access.
It is important to note that there are significant changes in the Primavera deployment when compared to Application 7, 7.5 and 8. In those versions, Primavera Integration was installed in Local Mode, but Application 9 onward, Remote Mode is used. If you already have Primavera installed and upgrade from App 7.5 or 8, following changes need to be done. (Customers upgrade from App9 does not need to follow instructions below as they are already installed Primavera in "Remote Mode")
During installation of Primavera Integration API, it is required to select "Client Side Package Only" (previously "Local Mode Package Only"). You may uninstall existing installation and re-install with the suggested option. It is mandatory to install this API in the same host where IFS Middleware server is installed.
Primavera Integration API should be installed in the machine where the web logic server has been installed for Primavera. Here the Integration API should be installed in Remote Mode (Refer Primavera Documentation on how Integration is installed in Remote Mode). In addition, PrimaveraAPI.war should be deployed in the web logic server. For detailed information, click here.
Primavera libraries in the middleware server lib should be deleted and follow the Step3.
You may notice that there are two new columns in the Integration Database Setup window. External Planning Tool Host and Port should be setup. For additional detail, refer Step 4.
In Update 4, IFS Applications is released with updated WebLogic and Java versions due to latest critical security patches released by Oracle. This has caused an incompatibility with the Primavera integration API, and as a result the Primavera integration will not work with Update 4 as it is. Oracle has provided a solution for this issue with a filter setting in Weblogic server. This suggested solution from Oracle will relax the security settings introduced with latest patches related to RMI calls. More information on the filter setting can be found at Oracle Doc ID 2421487.1. The instructions on how to implement the solution is given below.
Please add the following properties to the argument
section the startup Parameters of the IFS Middleware Server Admin Console
-Dweblogic.oif.serialFilterMode=combine
-Dweblogic.oif.serialFilterScope=weblogic
-Dweblogic.oif.serialFilter=maxdepth=10000
P6 EPPM 18.8 and P6 EPPM 17.9 .
Solution: Restarting the Server will solve this issue.
