Deploying Multiple Deliveries

When several single deliveries are to be installed, the normal way is to install them one by one in the same order as the deliveries was built.
If many single deliveries should be installed at the same time the Installer supports merging of the created single deliveries to one both in UI and in silent mode. This will reduce downtime of the system. Note: Deploying multiple deliveries is supported only on Windows, not on Linux.

Prerequisites

Important: The included deliveries must have been built in an uninterrupted sequence and the InstallationFiles folder copied with unique names to a location, e.g. c:\multideliveries

Example:

Merging the delivery

Merging deliveries means that the files in each single delivery will be copied to a new location, in defined order, overwriting existing previously copied files.
The database part of a delivery can be done it two different ways, merging the database code into one install.tem or installing each install.tem from the single deliveries in sequence. If the single deliveries contain different types of install.tem (advance/noadvance) then the database code cannot be merged. A delivery containing a master install.tem (see No merge of database files below), created by an earlier merge process of deliveries, cannot be included in an another merge.
When the merging has been completed, a file named Merged_Deliveries.log has been created in the new location. It contains information about the included single deliveries, listed in the defined order.

Merging database files
The database sub folders will be copied in sequence and the files calling these single files in the subfolders will be regenerated, as well as the tem files (e.g. install.tem) and install.ini file.

No merge of database files
The database folder in each single delivery will be copied to database folder as a subfolder, named as the single delivery and a new install.tem (master install.tem) will be created, calling these single deliveries install.tem in the defined copy order.
If a _utils folder is included in any of the single deliveries, the folder will be copied to the top database folder as well as the define.tem from the single delivery. If multiple versions of _utils exist in the single deliveries, they will be copied on top of each other as well as the define.tem
If any additional .tem files exist in the sub folders (e.g. ial.tem or eventaction.tem), a master tem for each of them will be created.

UI mode:

  1. Start IFS Applications Installer.
    This is done by starting the installer script located in the <ifs_home> folder.
  2. In the Manage Application Server Instance window, select one of the options Install delivery (recommended) or Install delivery and reconfigure described below:

    1. Install delivery
      This means running the installation and reconfiguration with the same parameters as the previous run with minimal operator interference.
    2. Install delivery and reconfigure
      This means manually accepting existing parameters in each window with the possibility to modify them.       The installer preserves all settings from the last installation/reconfiguration, so normally you just accept the values set.

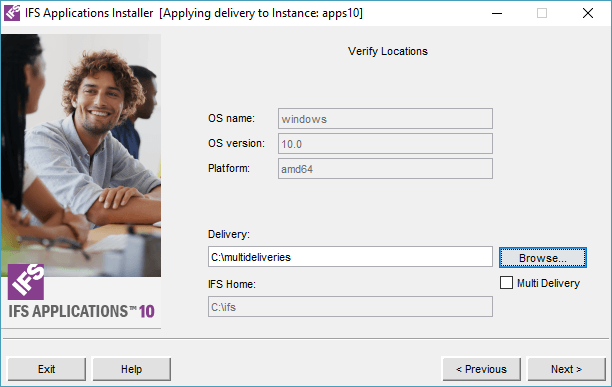

  3. Select the delivery to be deployed.
    Set the location of your delivery (e.g. c:\multideliveries).

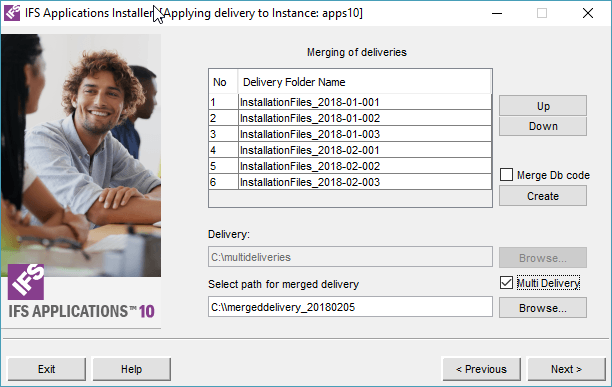

  4. Check Multi Delivery.
    A table containing the names of the InstallationFiles folders (single deliveries) will be displayed.
  5. Up or Down.
    If the deliveries are listed in wrong order, the order can be changed by selecting the row to move and press button Up or Down.

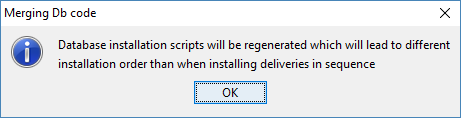

  6. Merge Db code.
    Check Merge Db code if the database files should be merged and unselect it if the database files should be deployed in sequence.
  7. Select path for merged delivery.
     Enter the path for the merged delivery. When the merge is complete, this path will be the path for your delivery installation, as a normal delivery installation



 When the delivery is merged and Next is pressed, the delivery path for the installation will be switched to the merged delivery path.



Silent mode:

The same result as above can be achived by starting the script merge_deliveries.cmd in command window.

The arguments used by merge_deliveries.cmd are:

Parameter Value
<merge type> mergetem / maintem (click the link for explanation for each type)
<multi_delivery>  Path to the folder containing the single deliveries
<merge_delivery> Path to the folder that will contain the merged delivery

Example:
merge_deliveries.cmd mergetem "C:\multideliveries" "C:\mergeddelivery_200180205"

The location for the merge_deliveries.cmd is <ifs_home>\repository\installer

The order of the single deliveries can be defined by creating a file named deliveries.txt in the top folder (e.g. c:\multideliveries). The default order is the alphabetical order, but if that doesn't correspond to the uninterrupted build sequence, this file should be created with the correct order, one row per single delivery.
